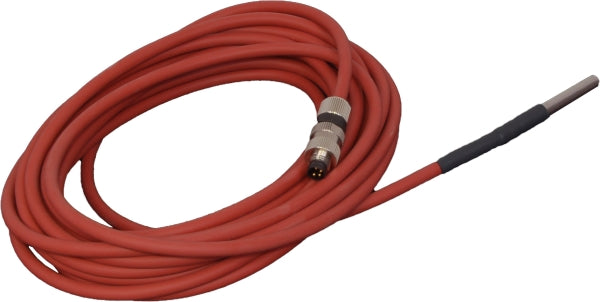

temperature sensor for measuring ground water temperature
Out Of Stock
temperature sensor for measuring ground water temperature
Technical data:
| Temperature sensors: | Pt100 1/3 DIN Class B |
| Temperature measuring range: | -50 to +180°C |
| Insulation resistance: | At 20°C and 500V DC, typ. 100 MOhm |
| Line: | 5m silicone cable (2x0.22 mm², max. +180°C) with wire end ferrules |
| Circuit type: | 4-wire connection |
| protective sleeve: | VA stainless steel 1.4571 |
| Dimension: | Ø 6 x 50mm |
| Protection class: | IP67 (moisture-proof rolled) |
| Storage temperature: | -20 to +70°C |
| Option: | cable length xx m |
| protective hose | |
| sensor connector M8 / M12 |
