ADL-SR Temperature Sensor PT1000

85,00€
85,00€
Excl. Tax. Shipping calculated at checkout.
Variant:
10 In Stock

  Readily available, 2-4 working days

These sensors are used for measuring temperature and are designed for direct connection to an ADL-SR Solar Meter. They are used for measuring surface or ambient temperature. Depending on the variant, mounting is possible in various ways, including:

  • On photovoltaic modules
  • In holes
  • On walls
  • and much more.

The sensors are pre-assembled for connection to the ADL-SR Solar Meter.

Technical Data:

Temperature Sensors PT1000
Measuring Range Temp. -35 °C to +105 °C
Measuring Current approx. 1 mA
Insulation Resistance At 20 °C and 500 V DC, typ. 100 MOhm
Cable PVC cable (2x0.25 mm², max. +105°C) with M8 connector
Cable Length
  • OF1 and OF3: 2 m
  • UF1: 2 m
  • UF2: 1.5 m
  • Further lengths on request.
Wiring Type 2-wire connection
Construction / Sensor Element
  • OF1: Aluminum contact block with thermally conductive adhesive pad

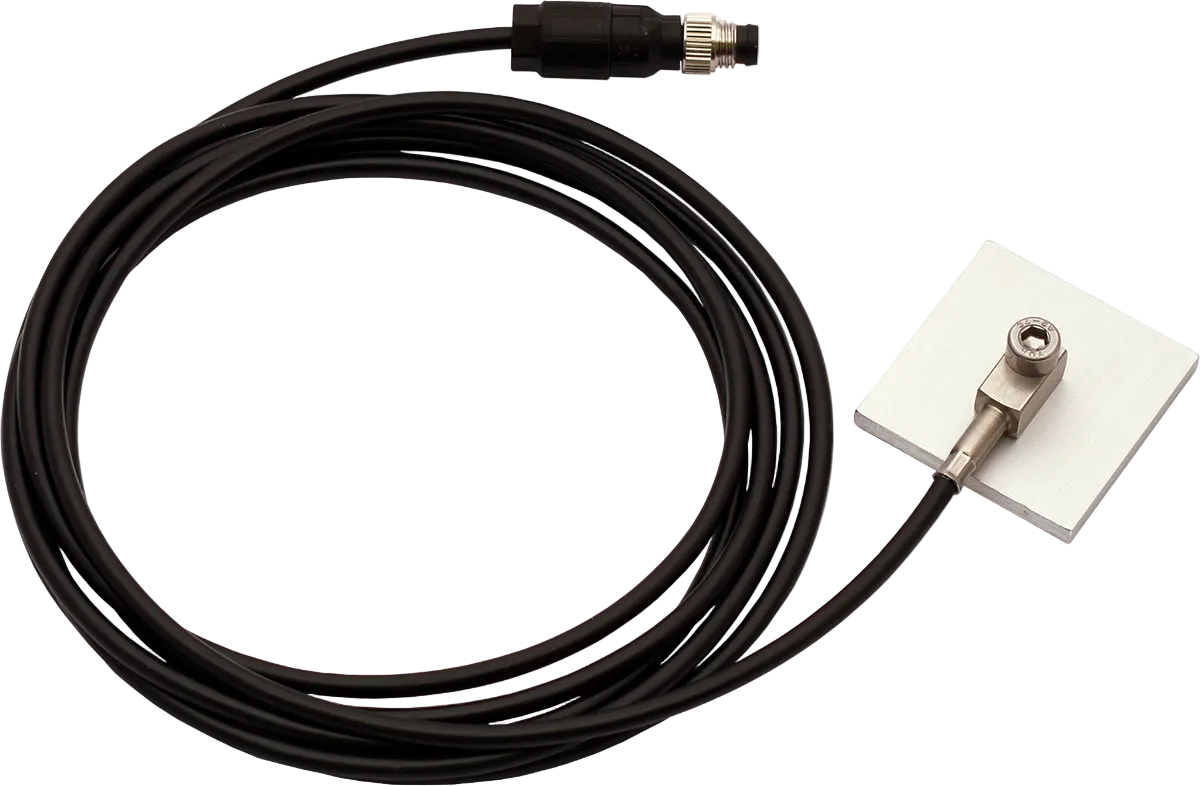

  • OF3: Stainless steel block for screwing (hole Ø: 5mm)

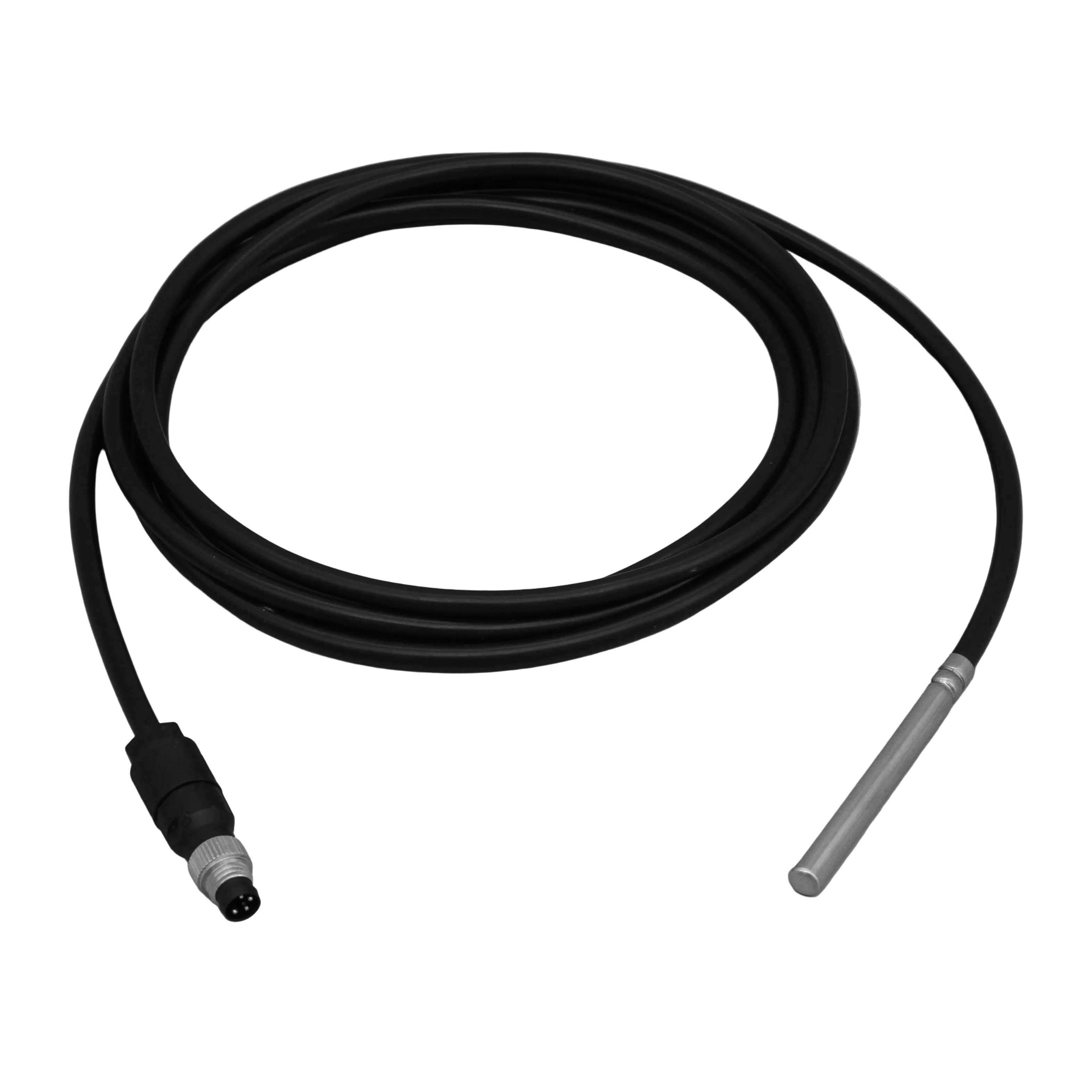

  • UF1: Stainless steel sleeve, Ø 6 x 50mm

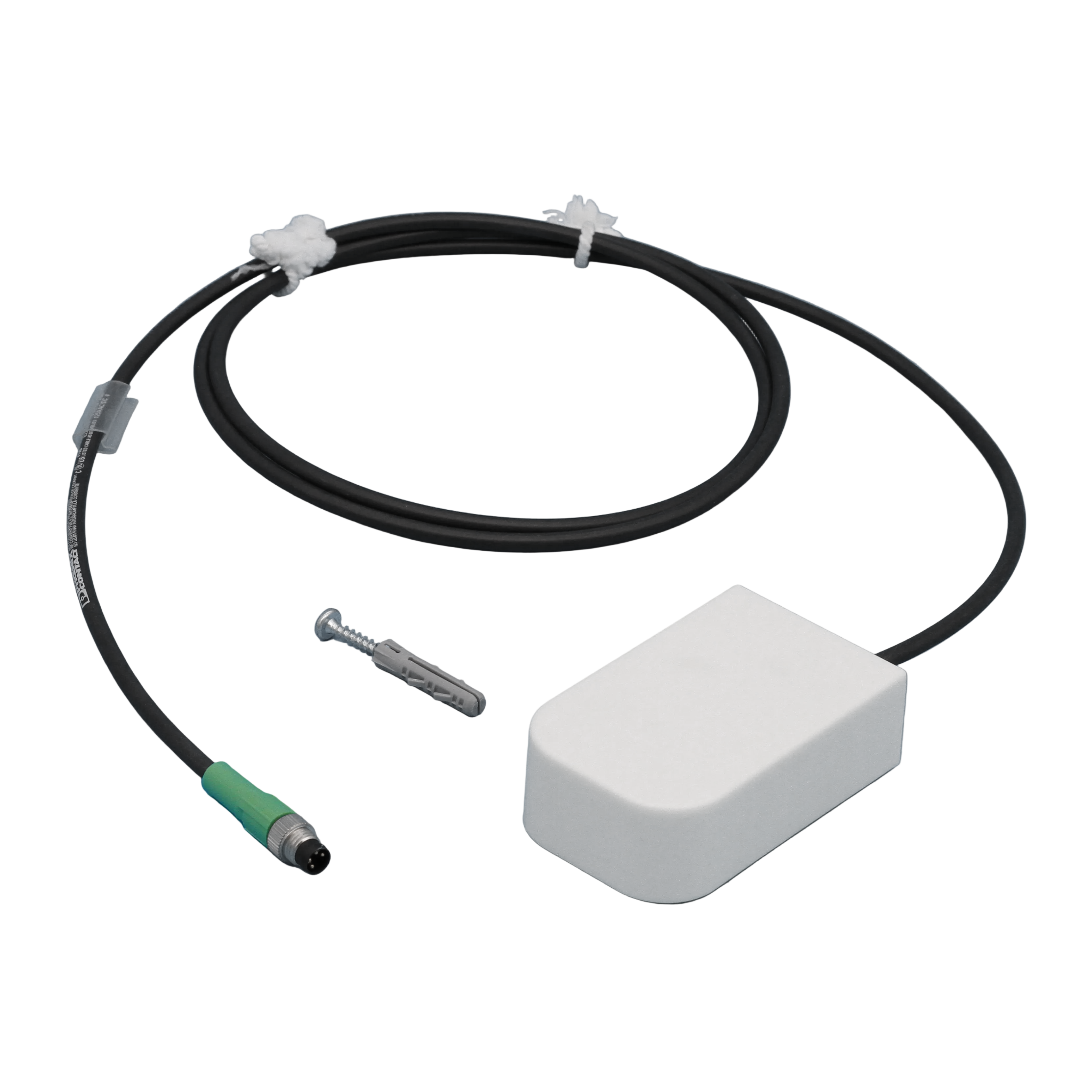

  • UF2: ABS plastic housing, RAL9010 (white)
Protection Class
  • OF1: IP65
  • OF3: IP54
  • UF1: IP67 (moisture-proof rolled)
  • UF2: IP43
Storage Temperature
  • OF1: -30 °C to +50 °C
  • OF3, UF1 and UF2: -35 °C to +105°C
Dimensions
  • OF1: Block L 40 x W 40 x H 4mm
  • OF3: Block L 15 x W 8 x H 8mm, bore Ø 5mm
  • UF1: Sleeve Ø 6 x 50mm
  • UF2: Housing L 80 x W 50 x H 25 mm
Housing
  • OF1: 98 g
  • OF3: 77 g
  • UF1: 75 g
  • UF2: 100 g
