soil moisture sensor PR2-6
Attention: Due to the current delivery situation, please request the product by email or via our contact form!

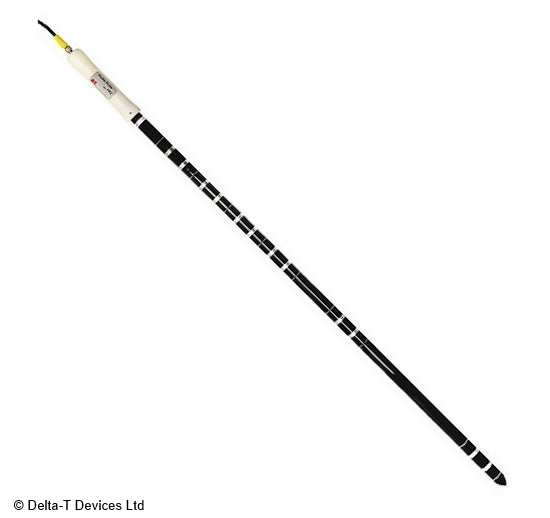

Sensor for determining volumetric soil moisture in 6 integrated measuring levels. The PR2 profile probe measures soil moisture profiles quickly, accurately and reliably. It uses a new measuring technology that ensures precise determination of the absolute water content (and not just trends) - in many soil types and fertilizer conditions, including saline soil conditions.
Technical data:
| Measuring range: | 0 … 100 vol.-% |
| measuring depths: | 10 / 20 / 30 / 40 / 60 / 100cm |
| Accuracy (0 ... 40 vol%): | ± 4 vol.% for soil-specific calibration |
| ± 6 vol.% with standard calibration | |
| Analog output: | 0 … 1 VDC (0 … 60 Vol.-%) |
| Supply voltage: | 5.5 ... 15 VDC |
| Power consumption: | ~ 120mA |
| Start-up time: | 1 second |
| Operating temperature range: | 0 … +40 °C |
| Protection class: | IP68 |
| Housing material: | PC |
| Dimensions (L/W): | 1350 x 25.4 mm |
| sensor cable: | optionally available |
| Weight: | approx. 950g |
| Further versions: | |
| S06415.2002 soil moisture sensor PR2-4 (measuring depths: 10 / 20 / 30 / 40cm) | |
