Precipitation sensor with pulse output
Out Of Stock

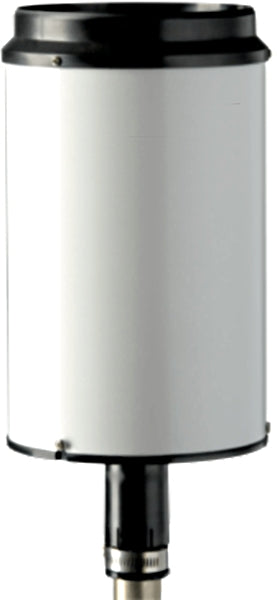

Precipitation sensor with pulse output
without heating.
The sensor is used to measure the amount and intensity of rain and works according to the tipping bucket principle. The device's collection area is 200 cm² and therefore complies with the guidelines of the German Weather Service. The measuring principle is based on the description in the WMO's "Guide to Meteorological Instruments No 8".
Technical data:
| collection area: | 200 cm² |
| Resolution: | 0.1mm |
| Accuracy: | 1% to 25mm/h |
| 3% over 25mm/h | |
| Measuring principle: | tipping bucket |
| Electrical output: | potential-free contact, normally open |
| Ambient temperature: | 5 to +50°C |
| Mounting type on mast: | Ø 34mm |
| Dimensions: | Ø 185 x 260mm |
| Further versions: | |
| S04907.1002 Precipitation sensor with pulse output and heating 30W (-20 … +50°C) | |
