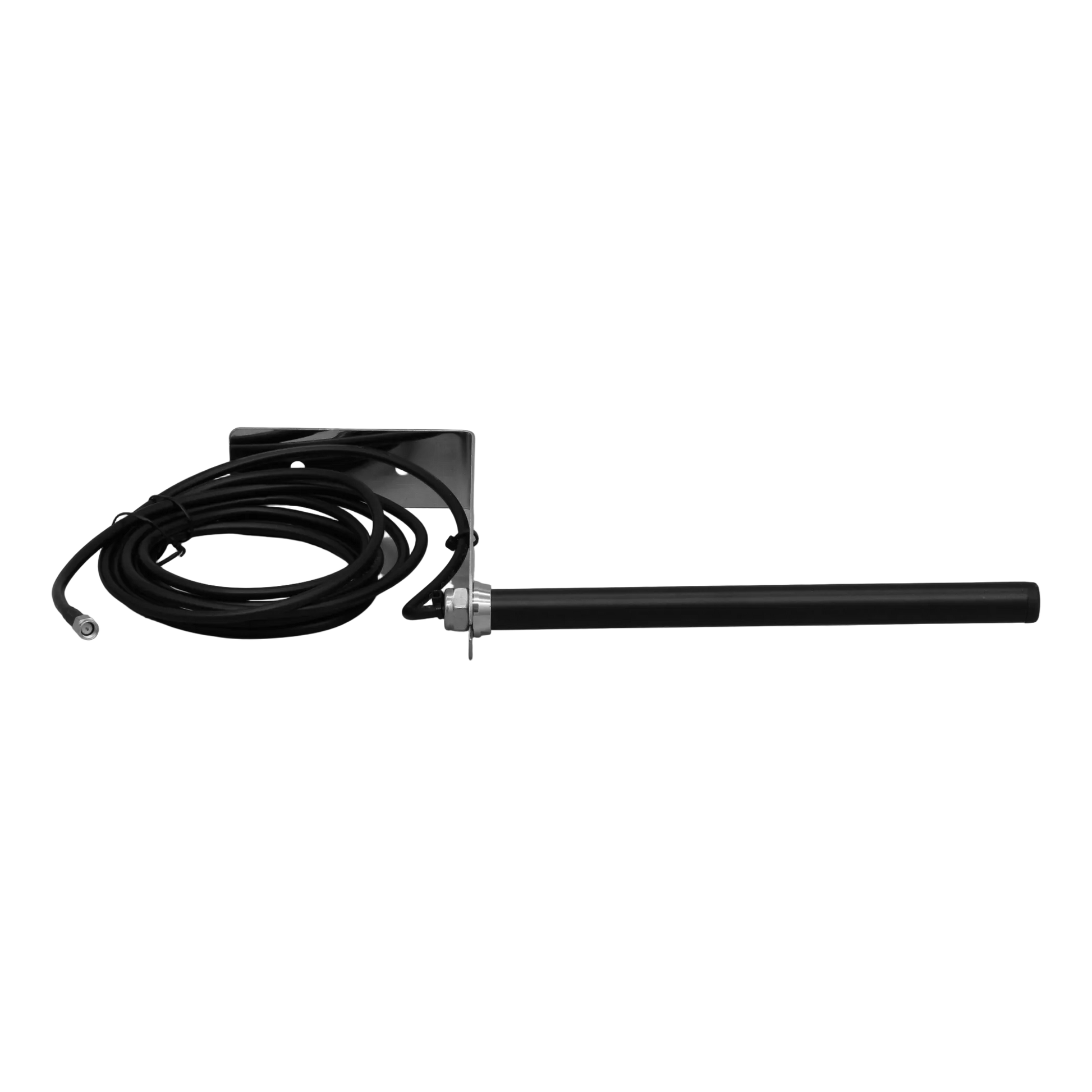

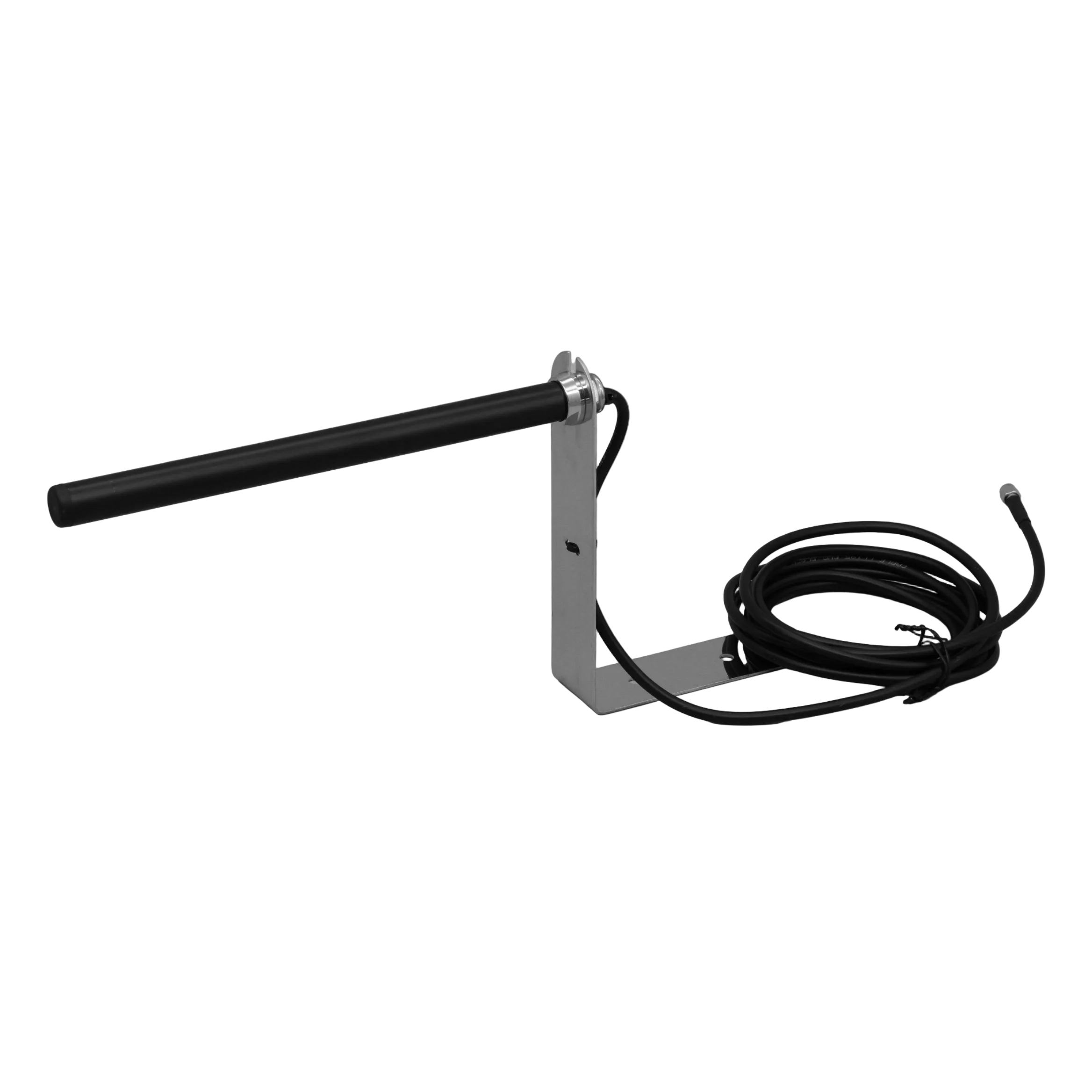

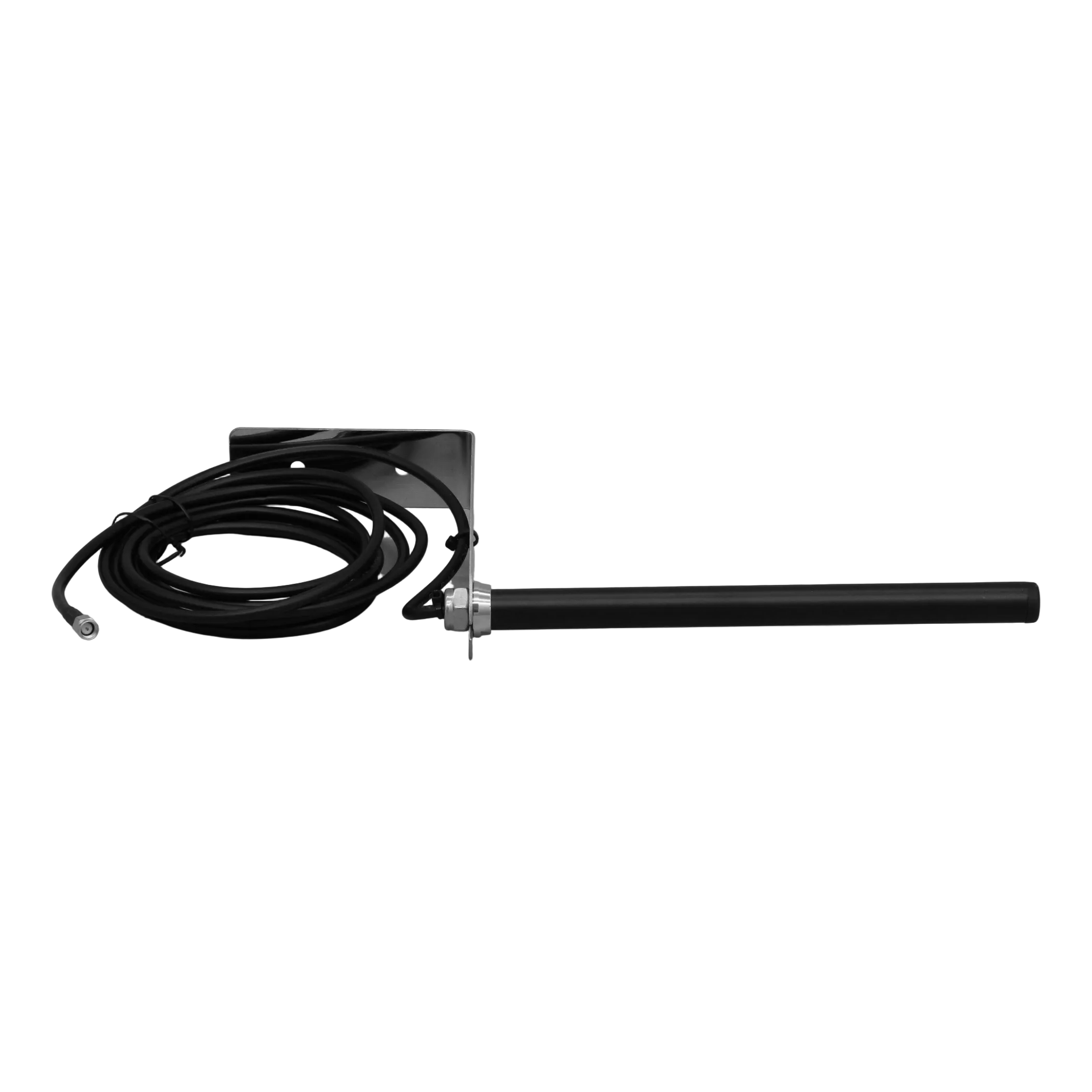

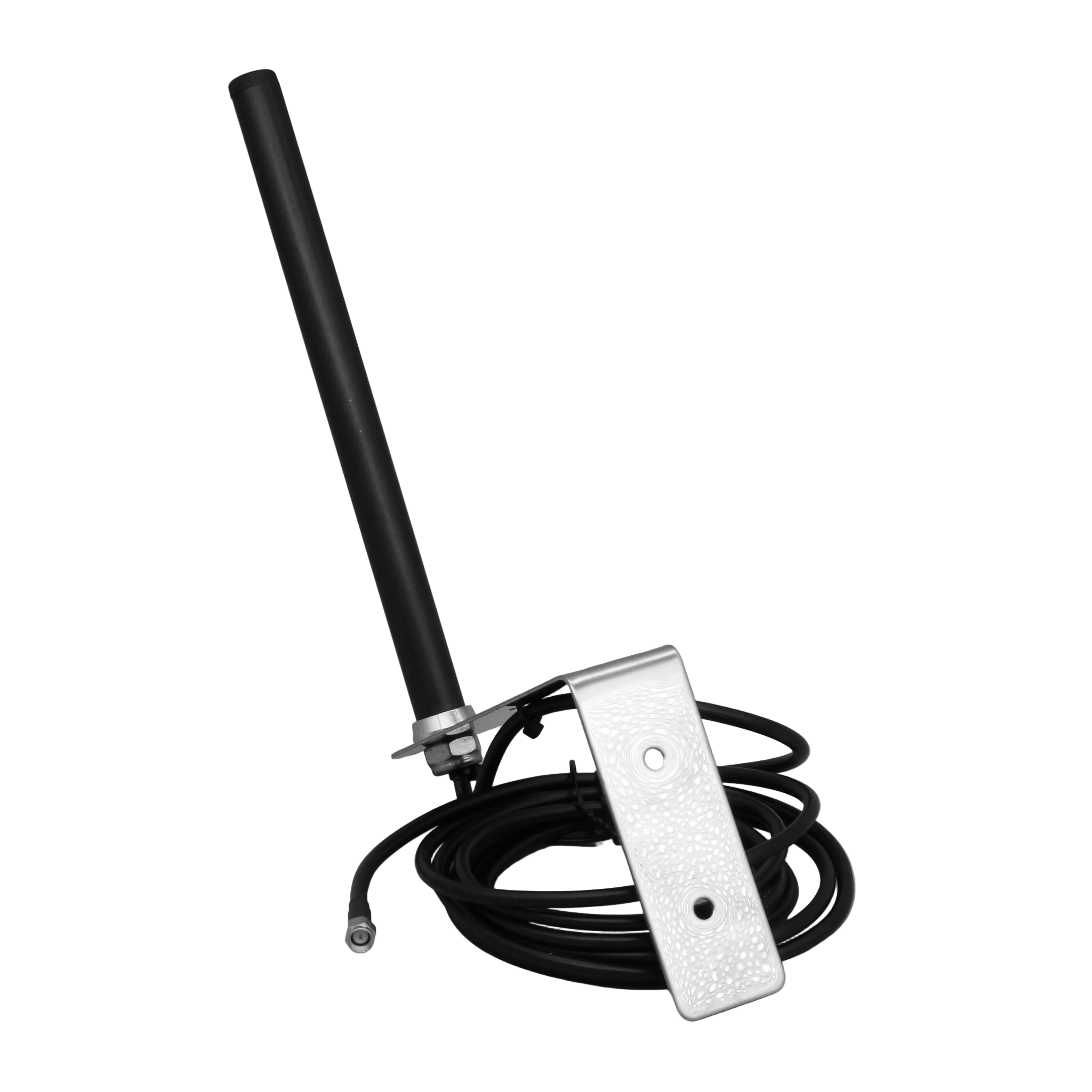

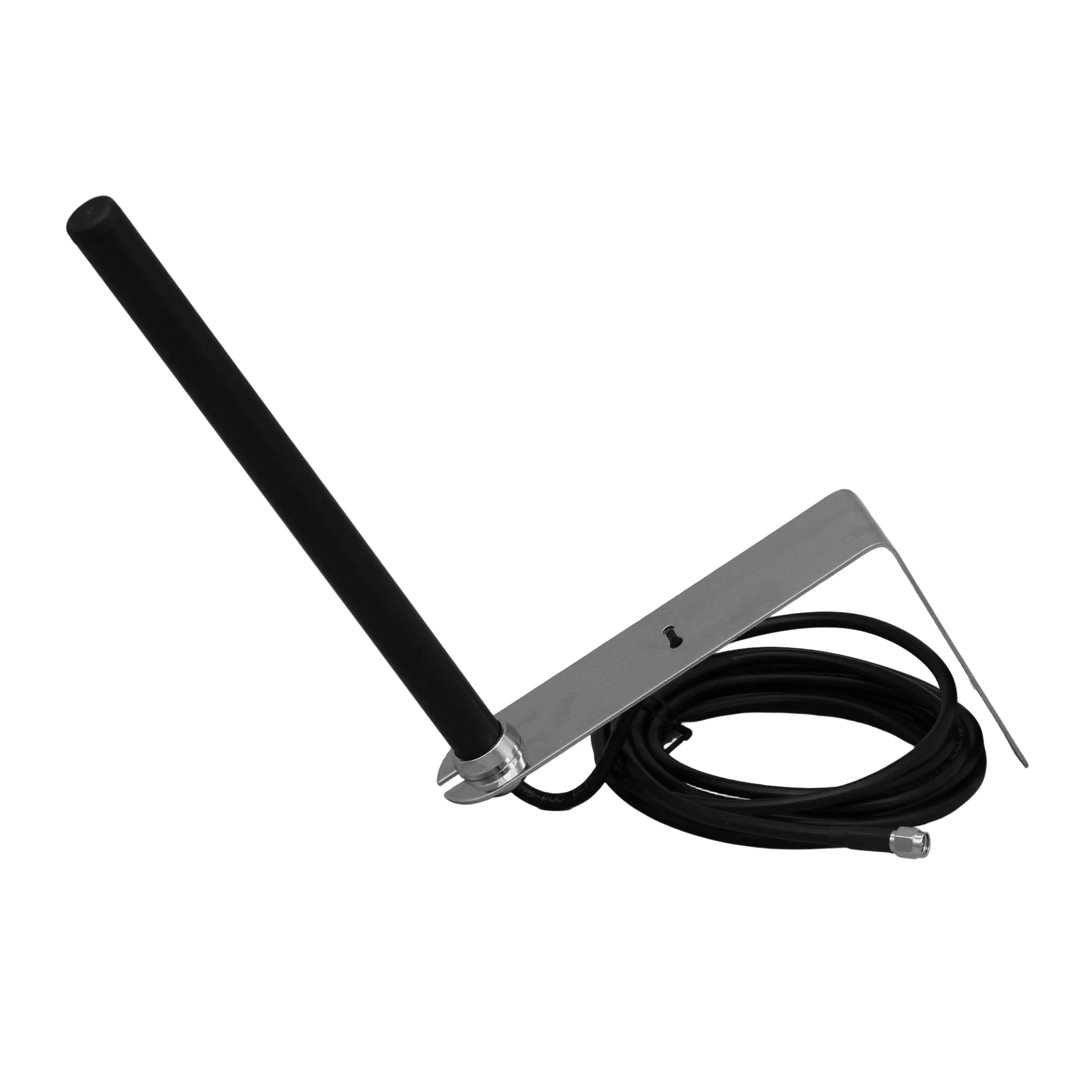

Station Antenna GSM/LTE for Wall Mounting

48,00€
48,00€
Excl. Tax. Shipping calculated at checkout.
Cable length:
2 In Stock

  Readily available, 2-4 working days

Station Antenna - LTE, GSM, UMTS, WLAN
incl. Wall Mount

Technical Data:

Standards: 2G,3G and 4G
Band (MHz): 700/850/900 1700/1800/1900/2100 2600
Frequencies (MHz): 698-960 1710-2170 2500-2700
Return Loss (dB): ~-16 ~-16 ~-16
VSWR: ~1.4:1 ~1.4:1 ~1.4:1
Efficiency (%): ~67 ~54 ~50
Gain Max. (dBi): ~3.4 ~2.5 ~1.0
Gain Average (dBi): ~-1.8 ~-2.7 ~-3.0
Impedance: 50 Ohm
Polarization: Vertical
Power: 25 Watt Max.
Cable: LL195
Cable Length: 3m, 5m or 10m
Mounting: Wall Mount
Dimensions (mm): 325x36x155 (220x Ø 16)
