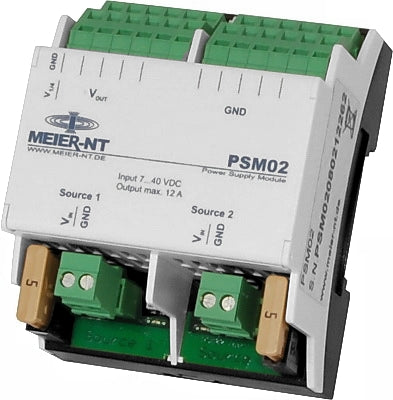

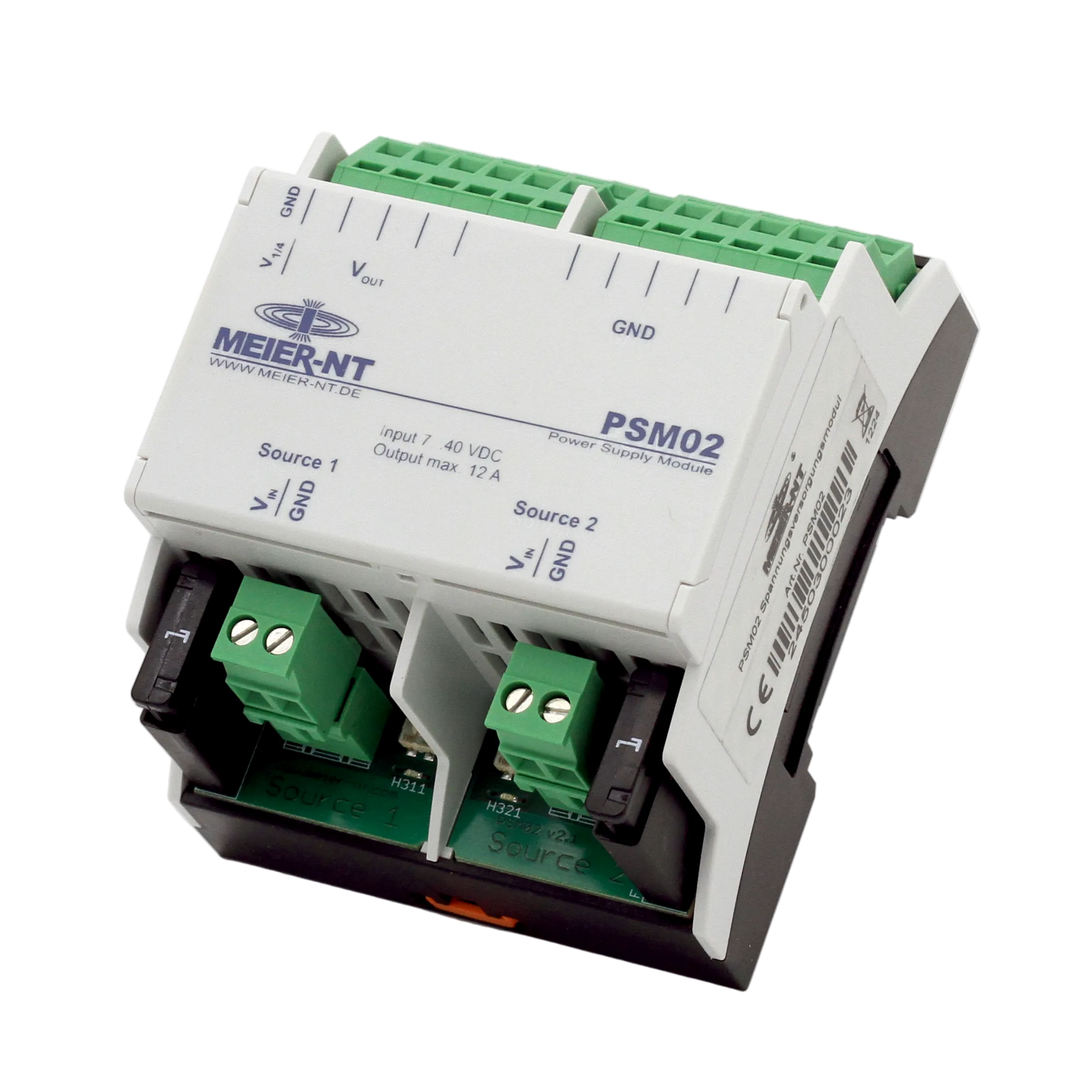

power supply module PSM02
- Uninterruptible power supply (automatic switching between Source 1 and Source 2)
- Adjustable deep discharge protection
- Status LED for visualizing the active source input
- terminal block for voltage distribution
Technical data:
| Voltage inputs: | 2 |
| Input voltage: | 7 - 40VDC |
| Voltage distribution: | 2x 10 spring-loaded terminals |
| Voltage divider: | 1x SV*1/4 |
| Output current: | max. 12A |
| Operating temperature range: | -30 - +60°C |
| Operating humidity range: | 0 - 95 %RH non-condensing |
| Protection class: | IP 30 according to DIN 40 050-9/5.93 |
| Dimensions (L/W/H): | 90x72x63 |
