RS-422/485 Repeater
- Regular price
- 125,00€
- Sale price
- 125,00€
- Regular price
-
Excl. Tax.
Shipping calculated at checkout.
1 In Stock
Readily available, 2-4 working days
Readily available, 2-4 working days

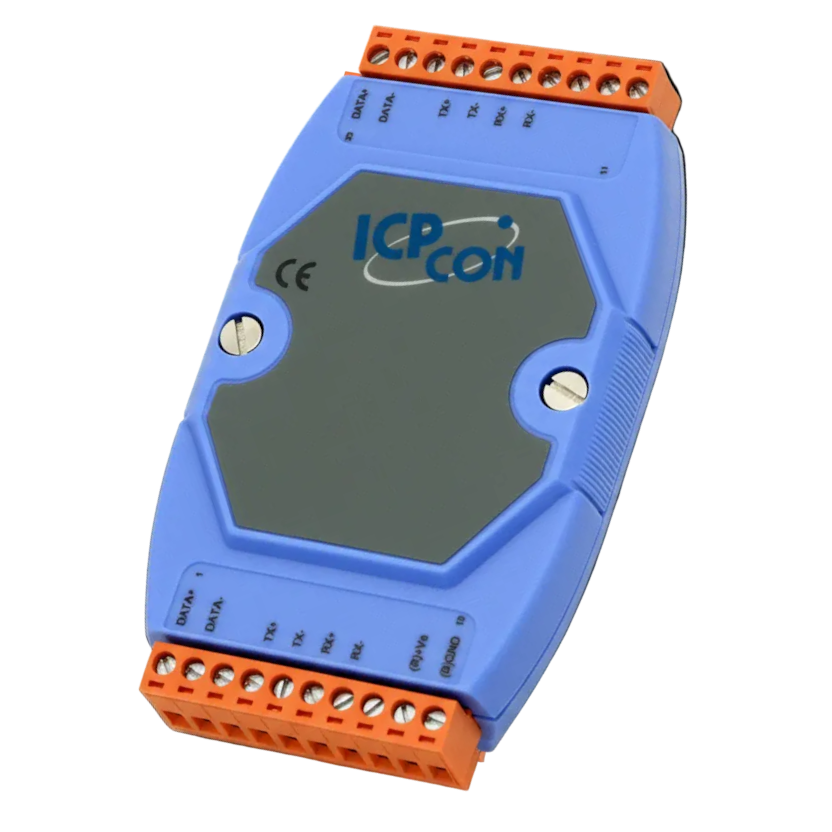

RS-422/485 Repeater
- Two-/four-wire operation (max. 1.2 km)
- Automatic direction detection
- Automatic baud rate detection (300 ... 115.2 Kbaud/sec)
- Isolated interface on the input side (up to 3,000 VDC)
- Can also be used as a hub
- Multi-way insulation
Technical data
| Two-wire operation | RS485 (max. 1.2 km) |
| Operating voltage | 10 ... 30VDC |
| Power consumption | 2.2W |
| Temperature range | -25 ... +75°C |
| Operating humidity | 10 ... 90% (non-condensing) |
| Dimensions (W x H x D) | 72 x 121 x 33 mm |
