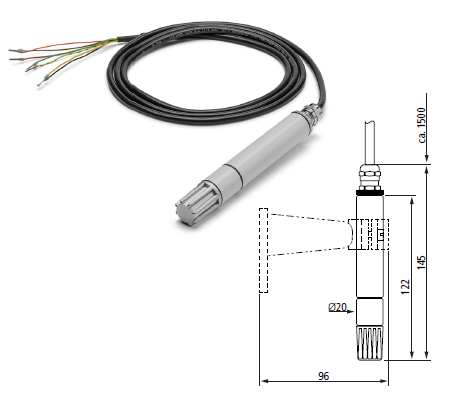

Humidity-air temperature sensor in meteorological design (analog)
Out Of Stock
Humidity-air temperature sensor in meteorological design
Technical data:
| humidity | |
| Measuring range: | 0 - 100%RH |
| Exit: | 0 - 1VDC |
| Accuracy: | +/- 2%RH (MB 5-95% RH, 10 - 40°C) |
| air temperature | |
| Exit: | Glass PT100 1/3 DIN |
| Supply voltage: | 5.7 - 30VDC |
| Operating temperature range: | -40 - +80°C |
| Protection class: | Sensor IP30, electronics IP65 |
| Cable length: | 5m / open ends |
| Filter: | ZE20 membrane filter for outdoor use, up to approx. 10m/s, protection against aerosols |
| Options: | output humidity 0 - 10VDC, 4 - 20mA |
| output air temperature 0 - 1VDC, 0 - 10VDC, 4 - 20mA |
