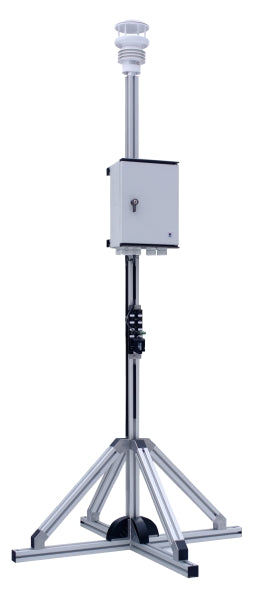

Compact, robust and cost-effective system for recording the most important meteorological quantities.
The basic system consists of:
multiparameter sensor
for measuring wind direction, wind speed, precipitation, humidity, air temperature and barometric pressure. The sensor is virtually maintenance-free due to its design (no moving parts).
data acquisition unit
The ADL-MXmini data logger has 1GB of data storage and an LCD display for displaying measured values. The data logger can optionally be supplied with a GSM/GPRS or WLAN module. The system can also be expanded with measuring channel extensions (e.g. FieldExtension) and is impressive due to its simple operation. The recorded measured values can be transferred either manually or automatically via FTP. The configuration is carried out via the integrated web server.
control cabinet system
Weatherproof housing made of GRP with protection class IP 66 / NEMA 4 for outdoor use.
Optional power supply 12VDC or 230VAC.
mast system
Robust and weather-resistant mast system made of aluminum profile.
Technical data:
| data logger ADL-MXmini | |
| Advertisement: | GLCD display 128 x 32 pixels |
| Memory: | Data storage 1GB (optional 2 ... 4GB) |
| Measurement storage rhythm: | 10 seconds - 24 hours |
| Interfaces: | 3x RS485 (connection of sensors / extensions) |
| 8x digital inputs (status / counter / frequency) | |
| 1x Ethernet | |
| 1x USB host | |
| Optional | |
| GSM / GPRS module: | Quad band 850 / 900 / 1800 / 1900 MHz |
| WLAN module: | IEEE 802.11n / IEEE 802.11 b/g |
| periphery | |
| Mast: | 2m mast aluminum profile / anodized |
| control cabinet: | GFK protection class IP 66 / NEMA 4 |
| General data | |
| Operating voltage: | 10 ... 36 VDC |
| Power consumption: | approx. 1.6W depending on the expansion stage |
| (GLCD display and Ethernet interface not activated) | |
| Operating temperature range: | - 20 ... 70 °C |
| Dimensions: | 1m x 1m x 2m |
| Optional measuring channel extension | |
| Field Extension Type PT100: | for measuring 5 PT100 temperature sensors |
| Field Extension Type 0 - 7VDC: | for measuring 5 voltage sensors |
| Field Extension Type 0 - 24mA: | for measuring 5 current loop sensors |
| Field Extension Type 0 - 50kOhm: | for measuring 5 resistance sensors |
| Field Extension Type SapFlow: | for measuring 2 SapFlow sensors |
| More options | |
| 12 VDC solar system: | 12VDC / 50W / 41Ah |
| 230 VAC power supply: | 230 VAC / 12 VDC / 1A |
| guying: | guying for 2m mast made of stainless steel |
| Software: | ADL-M data management software |
| ADL-W web visualization / portal |
