Three-stage surge protection
- Regular price
- 165,00€
- Sale price
- 165,00€
- Regular price
-
Shipping calculated at checkout.
Out Of Stock

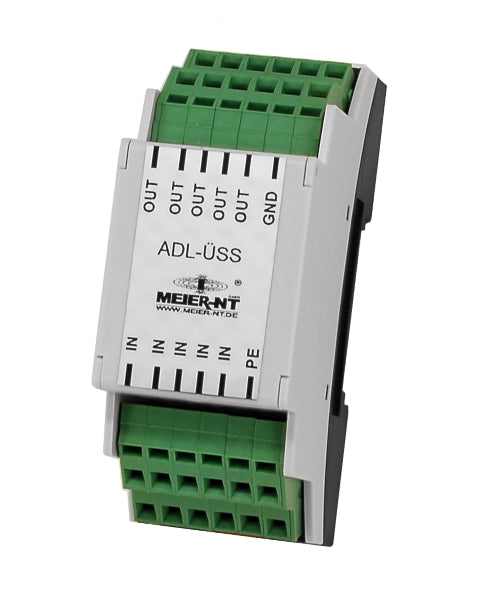

Three-stage surge protection for 10 signal wires
with common reference potential and separate GND / PE connection.
Technical data:
| Nominal voltage: | 24V DC |
| Highest continuous voltage: | < 25V DC |
| Rated current: | 1A |
| Direction of effect: | Line-Earth Ground |
| Operating temperature range: | -25°C ... 60°C |
| Operating humidity range: | 0 ... 95 %RH non-condensing |
| Protection class: | IP 20 according to DIN 40 050-9/5.93 |
| Housing: | polycarbonate |
| Dimensions (L/W/H): | 90x50x36 |
| Assembly: | NS 35 |
