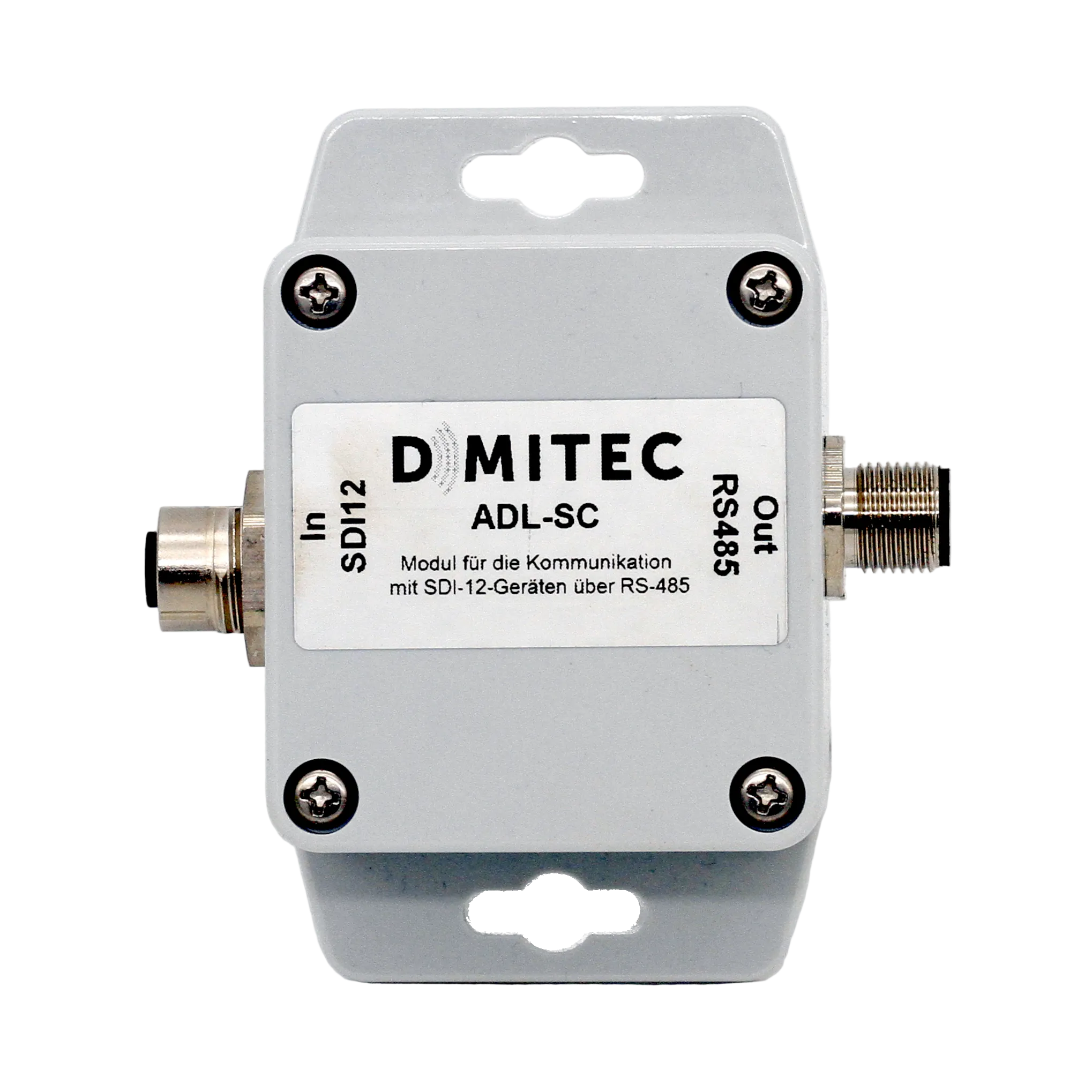

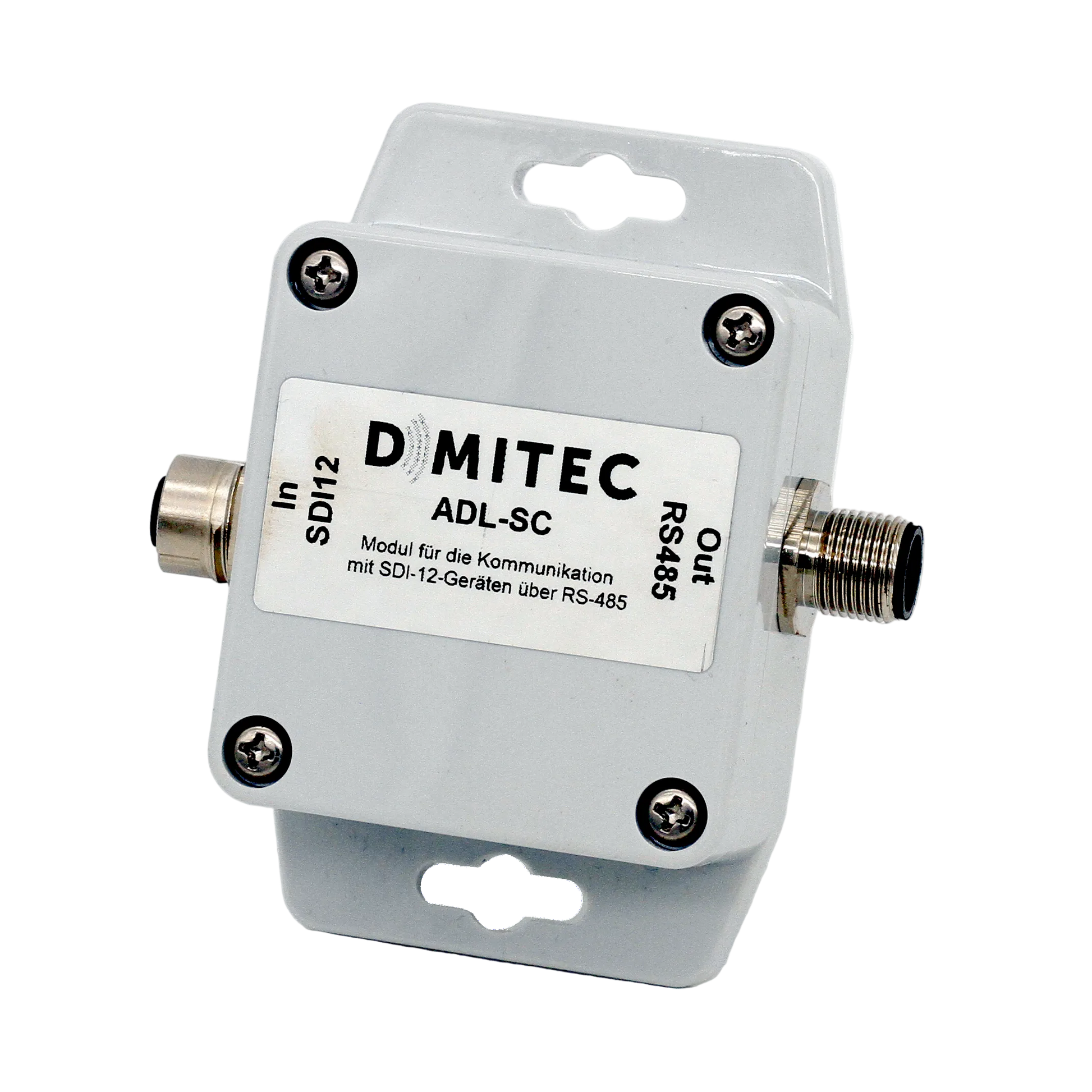

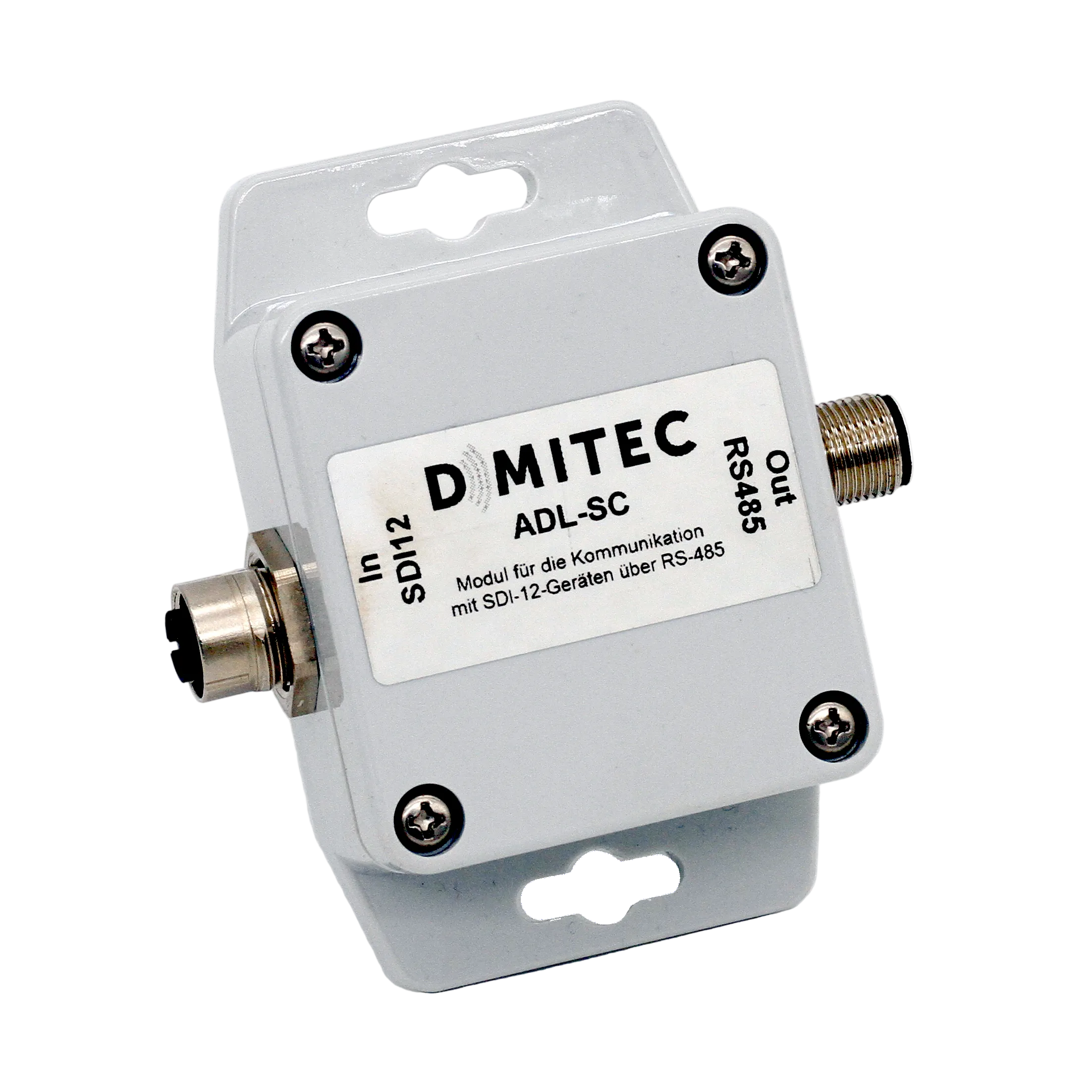

ADL-SC-SDI12 module for communication with SDI-12 devices via RS-485
- Regular price
- 165,00€
- Sale price
- 165,00€
- Regular price
-
Excl. Tax.
Shipping calculated at checkout.
3 In Stock
Readily available, 2-4 working days
Readily available, 2-4 working days
Module for communication between SDI-12 devices via RS-485. Enables, among other things, the reading of SDI-12 sensors via a data logger of the ADL-MXmini series (e.g. ADL-MXmini, ADL-MXSmini, ADL-MXSpro).
Technical data
| Connection | M12 4-pin |
| Supply voltage | 9-25VDC |
| Exit | RS-485 |
| RS-485 connection | M12 connector 4-pin. |
| SDI-12 connector | M12 socket 4-pin. |
| Protection class | IP65 |
