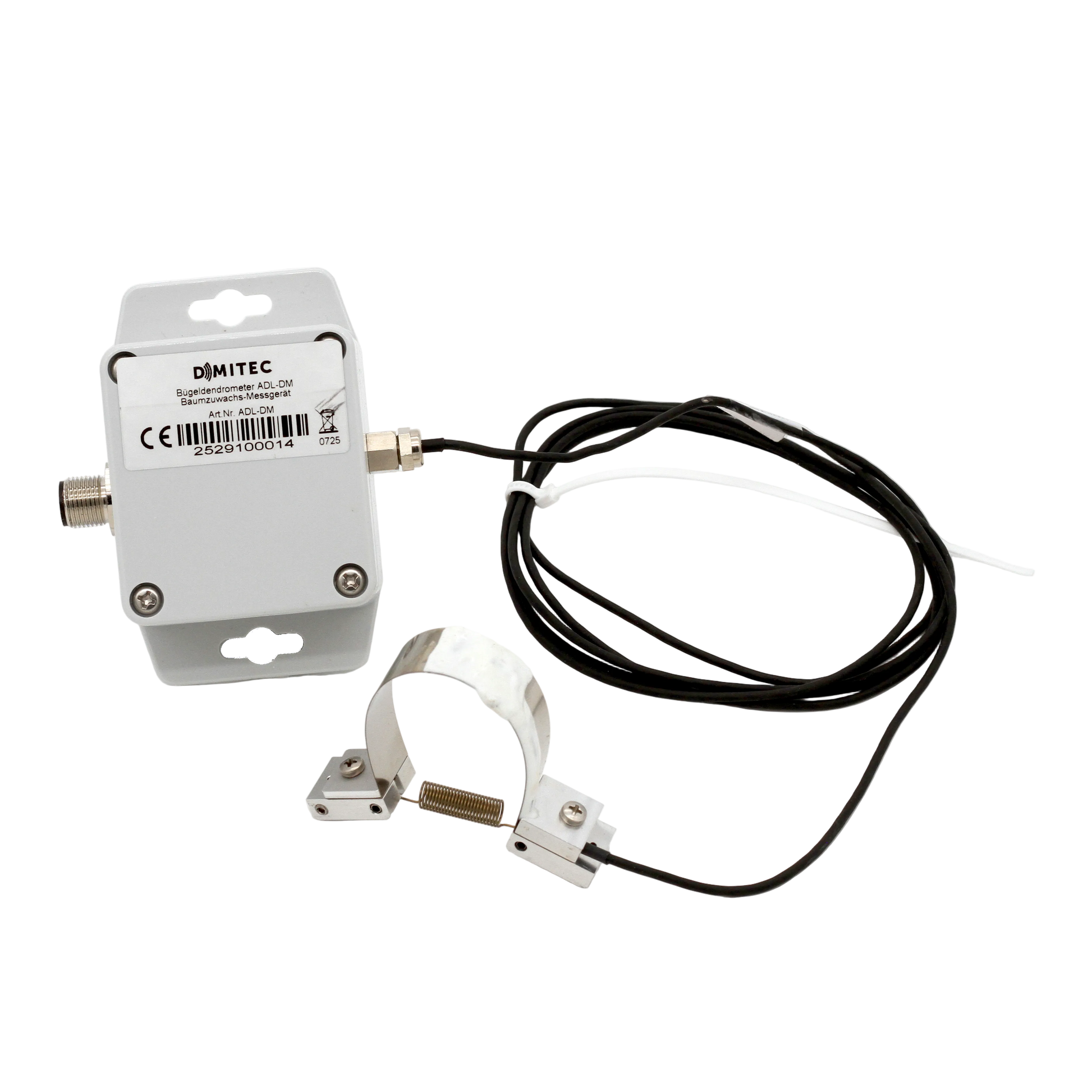

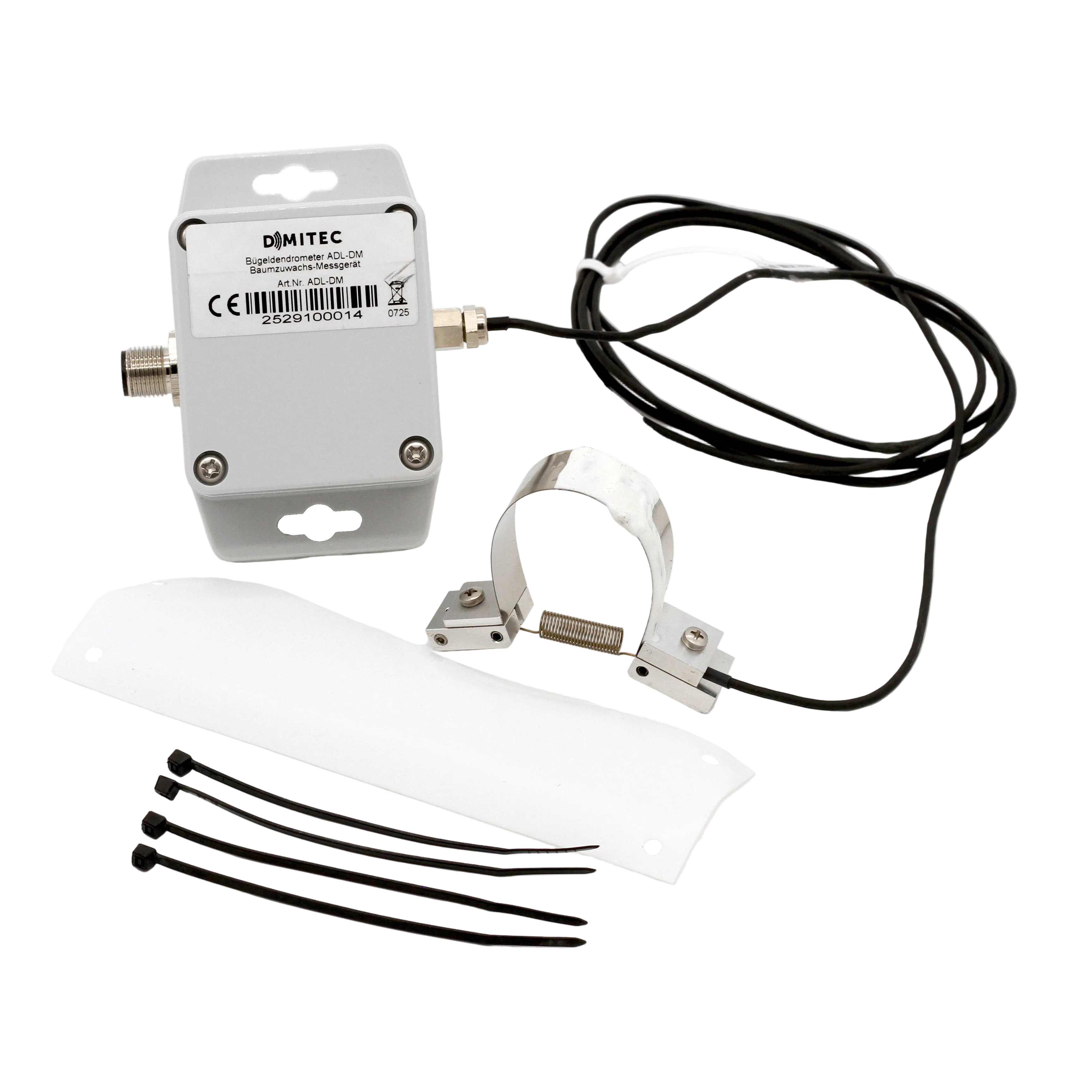

ADL-DM bar-type dendrometer
- Regular price
- 679,00€
- Sale price
- 679,00€
- Regular price
-
Excl. Tax.
Shipping calculated at checkout.
1 In Stock
Readily available, 2-4 working days
Readily available, 2-4 working days
Tree growth measuring device with strain gauges and RS485 Modbus RTU.
Technical data
Dendrometer
| sensor | DMS in Wheatestone full bridge |
| Measuring range | 0 .. 30 mm, adjustable growth |
| Bridge resistance | 350 ohms |
| accuracy | [TBD] |
| Temperature range | -30°C ... +50°C |
| Temperature dependence | [TBD] |
Measuring amplifier
| Supply voltage | 6...18 VDC |
| power consumption | Typical 3 mA, maximum 10 mA |
| Output signals | RS485 Modbus RTU |
Connection
Dendrometer
| 2m cable between dendrometer and measuring amplifier |
Measuring amplifier
| 4-pin M12 connector (flush-mount connector without cable) |

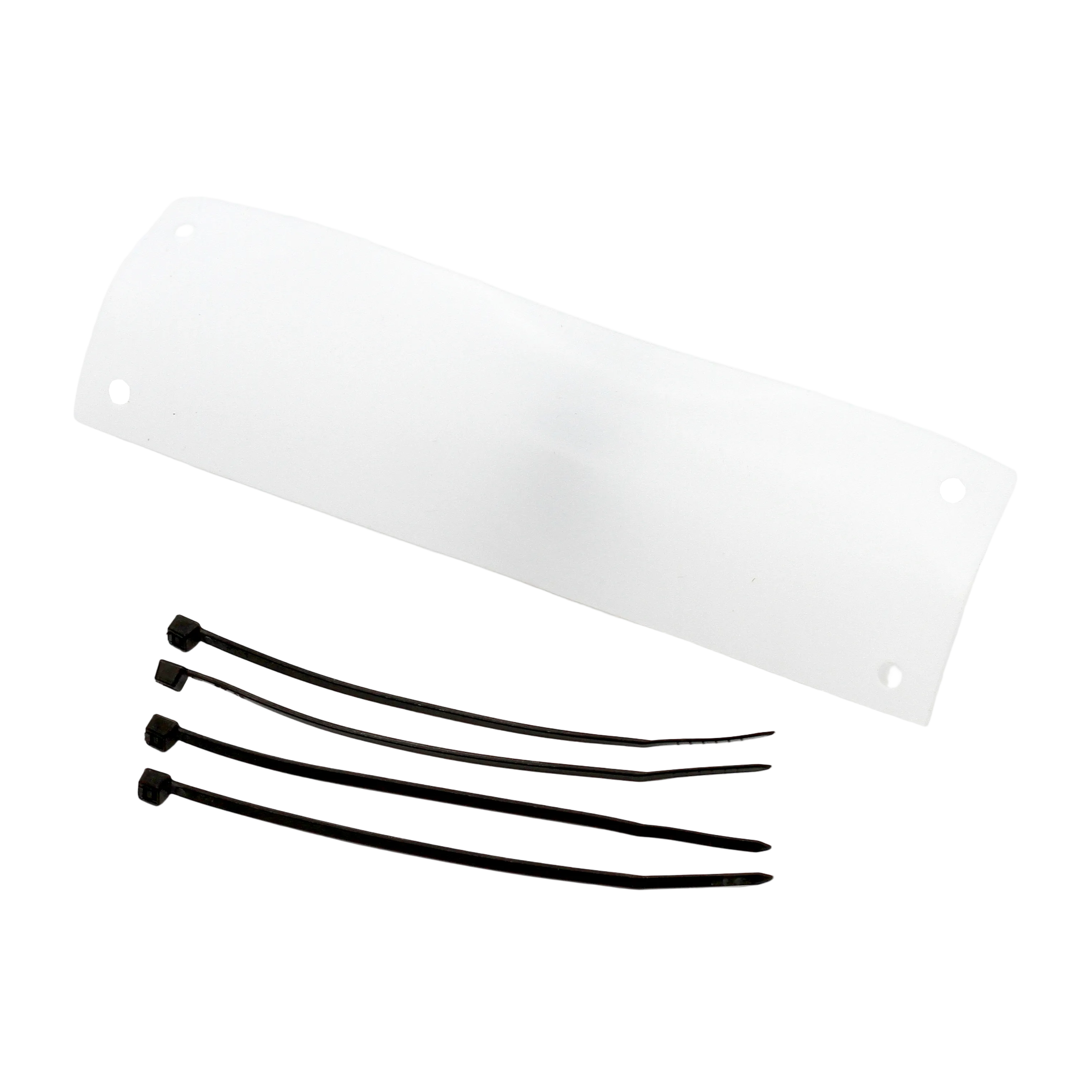

Still needed
- Teflon coating
- Measuring rope
