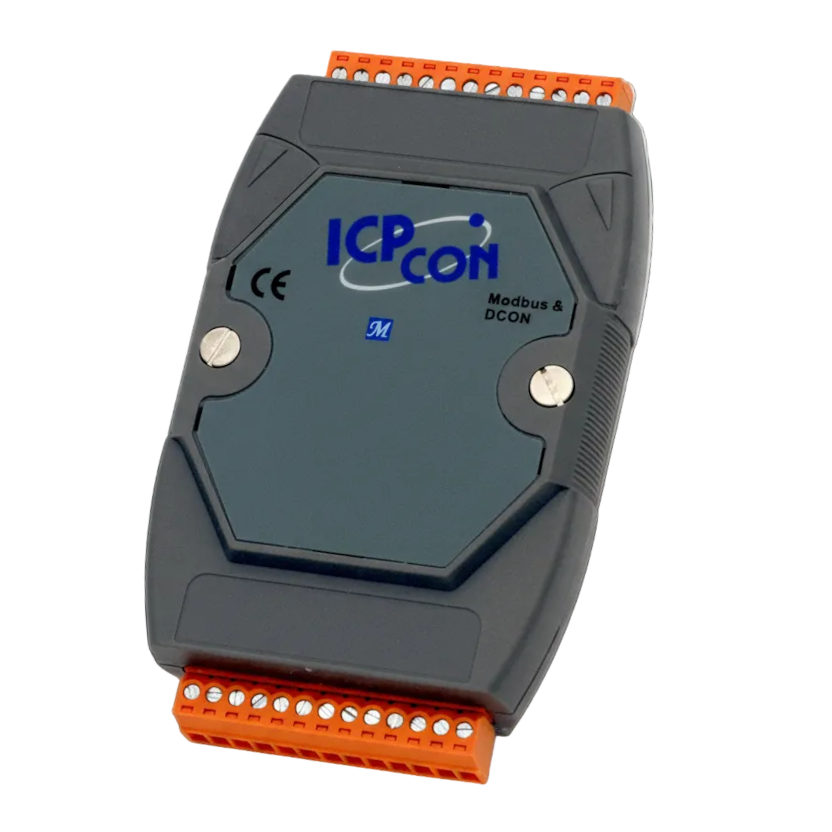

6-Channel RTD Input Module
- Regular price
- 384,00€
- Sale price
- 384,00€
- Regular price
-
Excl. Tax.
Shipping calculated at checkout.
1 In Stock
Readily available, 2-4 working days
Readily available, 2-4 working days
3-wire RTD input with line resistance elimination. Measured values can be read via Modbus RTU.
Technical data
| Analog inputs | 6 |
| Sensor type | Pt100, Pt1000, Ni120, Cu100, Cu1000 |
| resolution | 16-bit |
| accuracy | +/-0.05% |
| Two-wire operation | RS485 (max. 1.2 km) |
| Operating voltage | 10 ... 30VDC |
| Power consumption | 1.1W |
| Temperature range | -25 ... +75°C |
| Operating humidity | 10 ... 90% (non-condensing) |
| Dimensions (W x H x D) | 72 x 121 x 33 mm |
