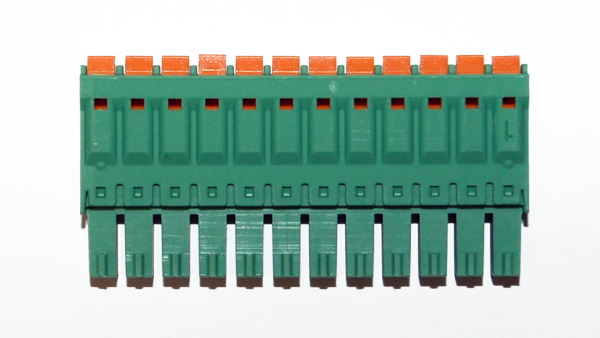

Connector FMC 12-pin for Schüco Sunalyzer Web PR and ADL-MXS
10 In Stock
Connector FMC 12-pin for Schüco Sunalyzer Web PR and ADL-MXS
- Comfortable operation of the clamping point using a screwdriver
- Highest contact and packing density in combination with double-deck MCDN(V) 1.5 base blocks
- Extremely flat height of only 7.8 mm
- Fast conductor connection through push-in spring force connection
- Various combination options with all MC 1.5 base strips in 3.5 or 3.81 mm pitch
- measuring point for voltage testing with 1 mm Ø test probe
Technical details:
| Rated current: | 8 A |
| Rated voltage (III/2): | 160 V |
| Number of poles: | 12 |
| grid dimension: | 3.81 mm |
| Connection type: | spring-loaded connection |
| Color: | green |
| contact surface: | tin |
