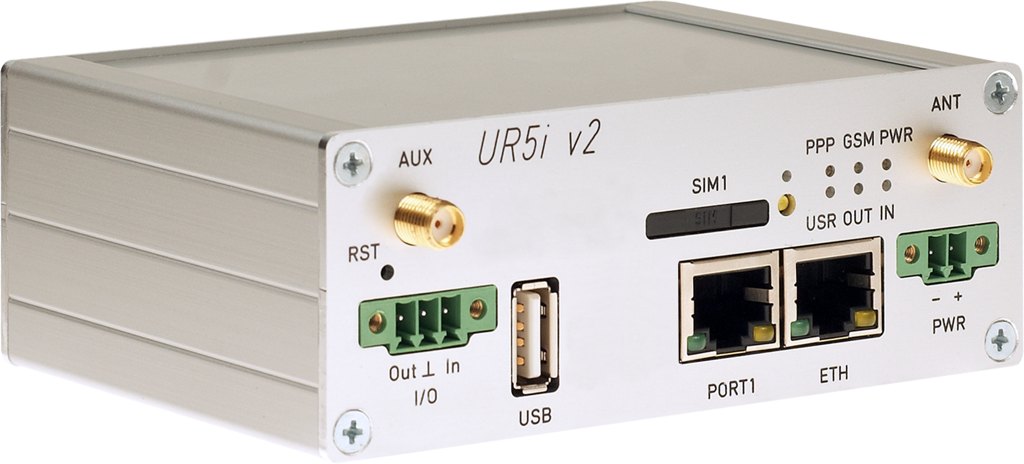

Mobile Router UR5i v2B - UMTS/HSPA+

Due to the Europe-wide network coverage and a data packet runtime of less than 500 ms, UMTS routers are ideal for industrial communication protocols. They are also backwards compatible with EDGE. This is why UMTS routers are a good choice when it is not clear whether UMTS network coverage is available at the site. With transfer rates of up to 14.4 Mbit/s for download and 5.7 Mbit/s for upload, the UMTS/HSPA+ router UR5i v2 is particularly suitable for transmitting moving images. It has the ECE test mark E8.

The router is configured and updated via USB stick, web interface and auto-update. OpenVPN and IPsec are accepted standards that ensure secure communication.

The basic version contains an expansion port. This can be configured with another interface.

Technical data:

• UMTS/HSPA+ Tri-Band (max. download 14.4 Mbit/s, max. upload 5.7 Mbit/s)
• frequency bands
• GSM/GPRS/EDGE: 850/900/1800/1900MHz
• UMTS: 850/900/1900/2100 MHz
• VPN client for encrypted connection to the headquarters
• IPSec Client/Server
• OpenVPN Client/Server
• L2TP
• PPTP
• Supports NAT/PAT and X.509
• Integrated Firewall (SPI)
  Routing protocols OSPF, BGP, RIP (optional)
• advanced Layer 2 network functions VLAN, QoS (optional)
• network scanner NMAP (optional)
• Simple web interface, DHCP, DynDNS, VRRP, Dial-in
• router control via SMS
• data volume/roaming control via SMS
• Status information via SNMP and SMS
• Extensive mobile statistics options
• two optional expansion ports:
• Port 1: Ethernet 10/100, RS232, RS422/485, M-BUS master or I/O module
  (4x DI, 2x AI, 1x DO, counting inputs on request)
• Port 2: RS232, RS422/485, M-BUS Master
• External GSM antenna (SMA - 50 Ohm)
• Power supply: 10-30 V DC
• LED status display
• Working temperature range: -40°C to +75°C
• Dimensions: Aluminum housing 42 x 80.5 x 113.5 mm
• Mounting: DIN rail 35 mm
• Weight: aluminum housing 287 g

Scope of delivery: Router, CD, patch cable, magnetic base antenna, plug-in power supply
