LTE router
Out Of Stock
Attention: Due to the current delivery situation, please request the product by email or via our contact form!

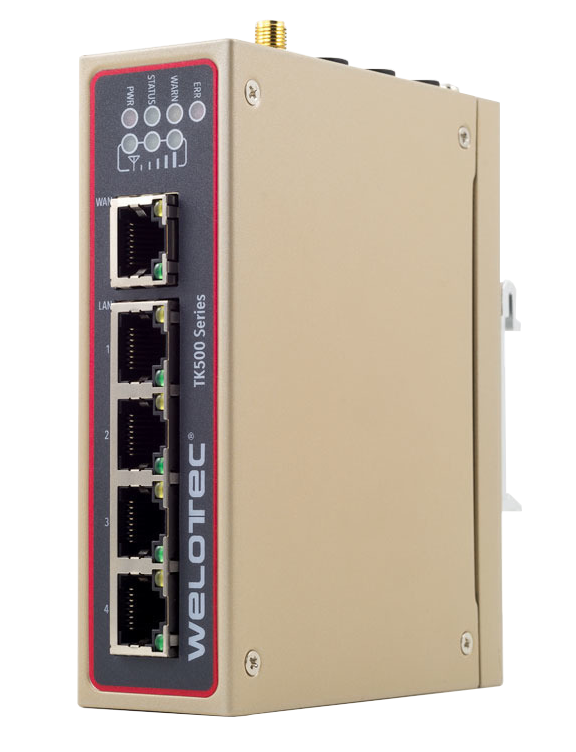

The new TK500 Basic Line industrial routers represent the professional entry into the world of Welotec routers and are characterized by a particularly compact housing and many connection options.
- LTE or UMTS (HSPA)
- OpenVPN & IPsec
- Supports Dynamic DNS
- metal housing
- Compact (35 x 127 x 108.2 mm)
- DIN rail mounting
- -15 °C to +70 °C
- Optionally with WLAN (IEEE 802.11n)
- WAN router version
- 5x RJ45 Ethernet ports (including 1 WAN)
- RS-232/485 interface
Technical data:
| General data: | |
| type | LTE router |
| Mobile phone features: | |
| chipset | Huawei ME909s-120 |
| 2G standard | GSM, GPRS, EDGE |
| 3G standard | UMTS, HSPA, HSPA+, DC-HSPA+ |
| 4G standard | LTE |
| GSM/GPRS frequency | 850/900/1800/1900 MHz |
| UMTS frequency | 850/900/1900/2100 MHz |
| LTE frequency | 800/850/900/1700/1800/1900/2100/2600MHz |
| Download (max.) | 150 Mbit/s |
| Upload (max.) | 50 Mbit/s |
| authentication | CHAP/PAP/MS-CHAP/MS-CHAP2 |
| mobile phone antenna connection | 1x SMA (f) |
| APN functions | APN (Access Point Name), VPDN (Virtual Private Dialup Network, IP VPN of the network operator) |
| Dial On Demand | Always online or dial-up, SMS or local data transfer |
| SMS functions | Reboot and status SMS |
| Ethernet: | |
| TX connection | RJ45 |
| 10/100BaseTX | 5 ports (including 1 WAN) |
| IEEE 802.3 | 10BaseT / CSMA/CD (Ethernet) |
| IEEE 802.3a | 10Base2 |
| IEEE 802.3i | 10BaseT |
| IEEE 802.3u | 100BaseT(X) / Fast Ethernet |
| Serial interfaces: | |
| Serial interfaces number | 1 |
| Serial interface type | RS-232, RS-485 |
| serial interface | TXD, RXD, GND, A(RS-485+), B(RS-485-) |
| Serial interface connection | connection terminals 5-pin (m) |
| Serial interface baud rate | 1200 - 115200 bps |
| Serial interface additional protocols | Transparent TCP, Virtual COM, Modbus TCP/RTU |
| Additional interfaces: | |
| WAN port | ADSL Dialup (PPPoE)/Static IP/DHCP (occupies 1 Ethernet port) |
| SIM card slots | 1 |
| Network properties: | |
| routing | Static routes |
| network protocols | ICMP, TCP, IP, UDP, DHCP, NTP, DNS, HTTP, HTTPS, Telnet, ARP, VRRP, PPP |
| connection check | PPP LCP Echo and ICMP Keep Alive for connection verification |
| NAT and PAT | Network Address Translation (NAT) and Port Address Translation (PAT) |
| DDNS (DynDNS) | Supports Dynamic DNS |
| VRRP | Automatic switching to the slave router if the master router fails |
| IPsec | Supports IPsec IKEv1 |
| OpenVPN | client and server |
| VPN authentication | Pre-shared key, digital certificates |
| firewall | Stateful Packet Inspection (SPI), filter multicast, filter PING packets, prevention of DoS attacks, various firewall strategies |
| MAC address assignment | Prevents illegal host access |
| port forwarding | Extranet users can access special intranet ports |
| access control | Flexible access control of TCP, UDP and ICMP packets |
| real-time clock | Provides the system with the current time (NTP) |
| Supply voltage: | |
| supply voltage V DC | 12 - 24 V DC |
| supply voltage connection | connection terminals 7-pin (m) |
| power consumption standby | 2.4 W |
| Active power consumption | 3.84 W |
| Software Features: | |
| configuration | web browser (http/https) |
| updates | Firmware update locally or via GPRS/UMTS |
| Physical properties: | |
| housing material | metal |
| protection class | IP30 |
| Dimensions (W x H x D) | 35 x 127 x 108.2 mm |
| Weight | 450 g |
| fastening | DIN rail |
| Environmental conditions: | |
| operating temperature range | -15 - +70 °C |
| humidity | 5 - 95 %, non-condensing |
| Advanced features: | |
| LED | LED display for signal strength, 4 status LEDs: POWER, STATUS, WARN, ERROR |
