IMS02A - Analog industrial modem with sleep mode
Out Of Stock

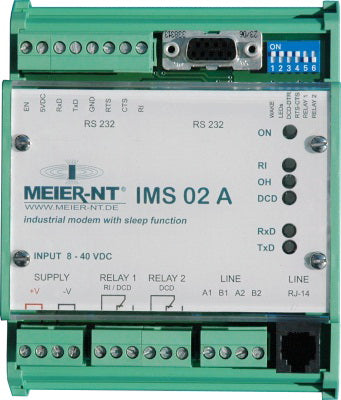

IMS02A, analog industrial modem with sleep mode
Features:
- Sleep mode with a power consumption of approx. 5µA @ 12V DC
- WakeUp automatic when calling
- Auto sleep mode after disconnecting DCD
- Status LEDs: ON, OH, RI, DCD, RxD, TxD
- Relay output Ring/DCD-active, potential-free switch
- Relay output DCD-active, potential-free switch
- 5VDC/ 800mA output
- WakeUp remote input
- LINE connection: RJ14, screw terminals
- RS232: 9-pin SUB-D, screw terminals
- DIP switch for configuration
- DIN rail mounting
Technical data:
| Supply voltage: | 8 - 40VDC |
| Power consumption: | Sleep mode min. 5µA @ 12V (with LEDs 'ON' 1.2mA @ 12V) |
| Transmission: max. 140 mA @ 12V | |
| RS232 interface speed: | 600 - 115,200 bps |
| Network interface: | analogue telephone network, dial-up line, maximum transmission rate 56,000 bps, country code according to TBR21 standard, i.e. public telephone networks of the EU countries (Belgium, Denmark, Germany, Finland, France, Greece, Great Britain, Ireland, Italy, Luxembourg, Netherlands, Austria, Portugal, Sweden, Spain), as well as Switzerland, Liechtenstein, Norway and Iceland, other country codes optionally possible. |
| Dimensions (LxWxH): | 106 x 126 x 61 mm |
| Operating temperature range: | 0 - 70°C |
| Humidity range: | 0 - 95% (non-condensing) |
